LEXIA 3 Dealer Diagnostic Interface for Peugeot & Citroen

LEXIA 3 is a Dealer-level diagnostic interface authorized by Citroen and Peugeot. This tool allows users to perform complete diagnostics of all models from 1995 to present. Follow the detailed information about this tool in the description below by VCCarTool.

Peugeot LEXIA 3 Diagnostic Interface Information

Peugeot LEXIA 3 diagnostic interface is the latest version, it is produced to work with Citroen and Peugeot vehicles. You can do all the comprehensive vehicle diagnostics like an authorized dealer.

• Product name: Lexia-3
• Version: Lexia3 V48, PP2000 V25, Diagbox V7.8.3.
• Language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech
• Update: By CD
• Weight: 0.8KG ( 1.76LB )
• Package: 30cm*14.5cm*5.5cm ( Inch: 11.81*5.71*2.17 )
• Work with: Diagbox Peugeot Software
• Supports K-Line, CAN-BUS, SAE J1850 (CPU and VPW) communication protocols, and multiplexers

.

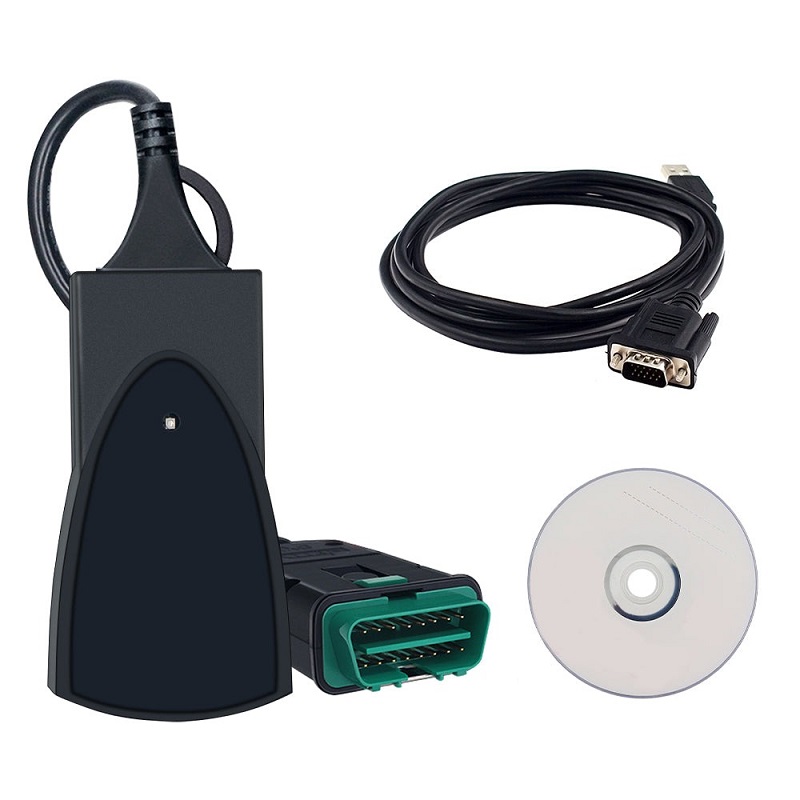

LEXIA 3 Package List

• 1pc x Main unit with extension OBD2 cable
• 1pc x Long 9pin to USB cable
• 1pc x Short 9pin to USB cable
• 1pc x OBD2 cable
• 1pc x 16pin to Clip Cable
• 1pc x Instruction for Installation and Activation DVD for Lexia3 PP2000

LEXIA 3 Diagnostic Kit Functions

The Lexia 3 device is not limited to reading error codes like other conventional car scan tools, but also performs ALMOST ALL functions that a Peugeot Citroen Dealer can perform, including:

• Read identification: Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc…
• Read fault codes: Displays all stored and pending fault codes with complete descriptions (e.g. “Rail pressure – too low pressure”). Program supports report printing or copy to clipboard.
• Clear fault codes: This function clears all stored fault codes and other diagnostic information.
• Auto-scan (complete car scan/test): Detects all ECUs (electronic control units) installed in the car and reads all diagnostic fault codes.
• Measured Values: Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in a graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.
• Actuator test: Actuator test activates a particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)
• Programming functions/Adaptation: This feature is of great importance in all vehicles because systems like Engine control units, Immobilizers, Airbags, Alarms, Body Control Units, and some others, require you to perform reset or programming procedures after car repair is done, or even configuration after replacing broken Control Unit.

LEXIA 3 Compatible Vehicles

LEXIA 3 is compatible with Citroen and Peugeot cars including:

• Citroen: C1, C2, C3, C4, C5, C6, C8, C-CROSSER, NEMO, BERLINGO, JUMPY, JUMPER, AX, SAXO, BX and so on.
• Peugeot: Most cars are from 1995, but it can not work well with Peugeot 307 after the 2004 year.
• Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

Why Choose LEXIA 3 from VCCarTool?

• Installed for over 10,000 customers worldwide
• 24/7 Technical Support
• Expert guidance from experienced technicians
• Remote assistance for diagnostics & coding
• Fully tested and activated software — ready to use

LEXIA 3 Dealer Diagnostic Interface is the go-to tool for anyone serious about servicing or repairing PSA vehicles. From simple fault code reading to advanced ECU programming and adaptation, it delivers dealer-level functionality at a fraction of the cost.

Buy now from VCCarTool to get professional tools with expert support included.
