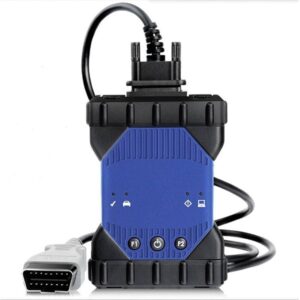

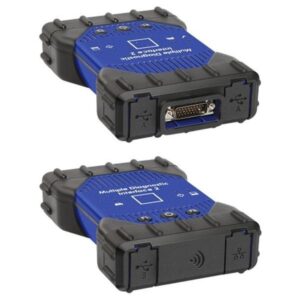

GM MDI 2 Global Diagnostic Interface Tool for GM

The MDI 2 GM Diagnostic Interface Tool is a professional diagnostic device designed specifically for General Motors (GM), Chevrolet, and VinFast vehicles. It provides dealer-level capabilities for vehicle diagnostics, ECU programming, and module replacement through a stable OBD2 connection.

Fully compatible with GM’s official software — Techline Connect, SPS2, and Tech2Win — the MDI 2 ensures precise and efficient communication with all vehicle control systems.

When you purchase from VCCarTool, you’ll receive comprehensive software support, including remote assistance for setup, driver configuration, and software installation to guarantee the tool operates at its best from day one.

About the MDI 2 GM Diagnostic Interface Tool

The GM MDI 2 (Multiple Diagnostic Interface 2) is the latest-generation diagnostic and programming interface developed for General Motors vehicles. It is an upgraded version of the original MDI, offering faster data transfer, improved hardware stability, and greater compatibility with modern vehicle communication protocols such as CAN and CAN FD.

The device enables technicians to perform a full range of diagnostic operations — including reading and clearing fault codes, ECU programming, module replacement, and system calibration — for all GM vehicle models. Designed to work seamlessly with Techline Connect, SPS2, and Tech2Win software, the MDI 2 provides a reliable connection between your PC and vehicle systems through OBD2.

Built for professional workshop use, the MDI 2 combines durability, accuracy, and ease of operation, making it an essential tool for technicians handling both legacy and new GM models.

Technical Specifications – GM MDI 2 Diagnostic Interface Tool

• Device Name: GM MDI 2 – Global Diagnostic Interface Tool
• Manufacturer: General Motors
• Device Type: Professional Diagnostic and Programming Interface
• Supported Software: Techline Connect, SPS2, Tech2Win, GDS2
• Supported Years: 1996 – Present (and future GM vehicle models)
• Communication Protocols: CAN (Supported), CAN FD (Supported), DoIP (Not Supported)
• Wireless Connection: Supported – WiFi 802.11 b/g/n (Point-to-Point, no access point required)
• USB Connection: High-speed USB 2.0 (with improved stability and reinforced connector)
• Power Supply: Powered via USB or DLC connection (no AC adapter required)
• Operation Stability: Super-Capacitor technology allows operation during engine crank
• Temperature Range: Industrial-grade components for extended operating range
• Compliance: SAE J2534 and ISO-22900 Compliant
• Hardware Warranty: 1 Years (exchange process for hardware faults)
• Technical Support: Multilingual hotline for hardware inquiries
• Enclosure Design: Compact, durable design resistant to drops and fluid exposure

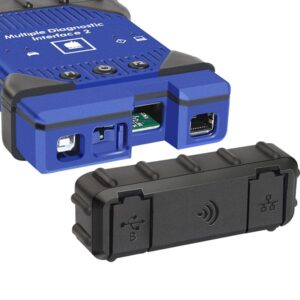

• Expansion Capabilities: Two USB host ports, SD card slot, programmable function buttons

Key Features GM MDI 2 Diagnostic Interface Tool

• Next-Generation Diagnostic Interface: The GM MDI 2 replaces the original MDI, offering higher processing power, improved security, and faster data transfer between the vehicle’s ECU and PC.
• Comprehensive Software Compatibility
  • Works with Techline Connect, GDS2, SPS2, and Tech2Win diagnostic software.
  • Supports Pass-Thru programming for all GM vehicles manufactured since 1996 and future models.
• Enhanced Connectivity Options
  • High-Speed USB 2.0 for stable and fast communication.
  • Wireless connection (WiFi 802.11 b/g/n) with plug-and-play setup — no IT support or Access Point required.
• Improved Durability and Design
  • Reinforced enclosure protects against drops and fluid exposure.
  • Longer 2-meter DLC cable with twisted pair wiring for Global B vehicles.
  • Operates across extended temperature ranges with automatic power-down when overheating is detected.
• Power Efficiency and Stability
  • Operates directly from USB or DLC power — no separate AC adapter needed.
  • Integrated Super-Capacitors maintain connection stability during engine cranking.
• Future-Ready Hardware Expansion
  • Two USB host ports and SD card slot for future software extensions.
  • Programmable function buttons ready for additional features or applications.
• Wide Protocol Coverage
  • Fully supports CAN and CAN FD communication.
  • Complies with SAE J2534 and ISO-22900 industry standards.
• Reliable Technical Support & Warranty
  • Includes 2-year warranty (hardware exchange for faults).
  • Backed by GM’s multilingual technical hotline for hardware support.

GM MDI 2 delivers dealer-level diagnostics and programming for all GM vehicles, ensuring faster, safer, and more stable operations for technicians and workshops handling both legacy and modern GM systems.

Compatible Software & Supported Vehicle Range

Compatible Diagnostic Software: GM MDI 2 works seamlessly with official GM diagnostic platforms, allowing full system diagnostics, ECU programming, and module flashing across a wide range of GM vehicles.

• Techline Connect – The unified GM service platform that integrates GDS2, SPS2, and Tech2Win.
• GDS2 (Global Diagnostic System 2) – Used for diagnostic and programming of GM vehicles from 2010 and newer.
• Tech2Win – Required for GM vehicles produced between 1996–2013.
• SPS2 (Service Programming System 2) – Supports ECU programming and calibration updates for all current GM models.

Supported Vehicle Brands:

• Chevrolet
• Buick
• GMC
• Cadillac
• Opel / Vauxhall
• Holden
• Other GM divisions (for North America, Europe, and global markets)

Supported Model Years: Fully supports vehicles from 1996 to present, including upcoming Global B architecture vehicles.

Communication Protocols:

• CAN (Controller Area Network)
• CAN FD (Flexible Data-Rate)
• J2534 and ISO-22900 compliant

Note:

• When purchased from VCCarTool, the device comes pre-configured and tested with GM diagnostic software.
• The setup includes software installation support and driver configuration via TeamViewer or UltraView to ensure plug-and-play operation.

Why Choose MDI 2 GM Diagnostic Interface Tool at VCCarTool?

When you purchase the GM MDI 2 Diagnostic Interface Tool from VCCarTool, you’re not just buying a diagnostic device — you’re getting a complete professional setup and after-sales service experience.
Our team provides free remote installation, software configuration, and technical support to ensure the tool works perfectly with GM diagnostic software such as Techline Connect, GDS2, and Tech2Win.

You’ll also benefit from:

• 100% original hardware – tested and verified before shipping
• Pre-installed drivers and firmware ready for use
• Expert assistance in connecting MDI 2 with GM diagnostic software
• Professional customer care and warranty support

Warranty & Return Policy

All products at VCCarTool are covered under our standard warranty policy:

• Warranty period: 12 months from the date of purchase
• Coverage: Hardware defects under normal use conditions
• Replacement process: Free exchange for hardware faults verified by our technical team
• Software assistance: Lifetime remote support for software installation and activation
• For returns, please contact us within 7 days of receiving the product if you encounter hardware issues or the device arrives damaged.

Shipping & Delivery

• We provide worldwide shipping with reliable carriers to ensure safe and fast delivery.
• Processing time: 1–3 business days after order confirmation
• Shipping options: Standard international shipping or express service (DHL / FedEx / UPS)
• Tracking: Every order includes a tracking number for real-time updates
• Packaging: Secure and shockproof packaging to protect the diagnostic tool during transit

If you need assistance or have any questions, please contact VCCarTool support team via WhatsApp: +1 (901) 414-1927 — we’re always ready to help you get the best out of your diagnostic setup.

The GM MDI 2 Diagnostic Interface Tool is an essential device for professional technicians and workshops specializing in GM, Chevrolet, and VinFast vehicles. With its advanced hardware, stable connection, and compatibility with GM’s official diagnostic software, the MDI 2 delivers fast and accurate diagnostic and programming performance.

When purchased from VCCarTool, you’ll receive not only genuine equipment but also full setup support, ensuring your device works seamlessly with the required software.
