ECU PCB Software Schematics with Electronic Components of Car ECUs and Additional Information

PCB Solution FBL is an advanced interactive software solution developed by Movilcenter Lab, designed specifically to help automotive electronics professionals analyze the structure and functionality of engine control unit (ECU) PCBs.

This software is aimed at independent ECU repair specialists, professional workshops, and automotive electronics laboratories that require accurate PCB-level understanding for diagnostics and repair.

Key Features

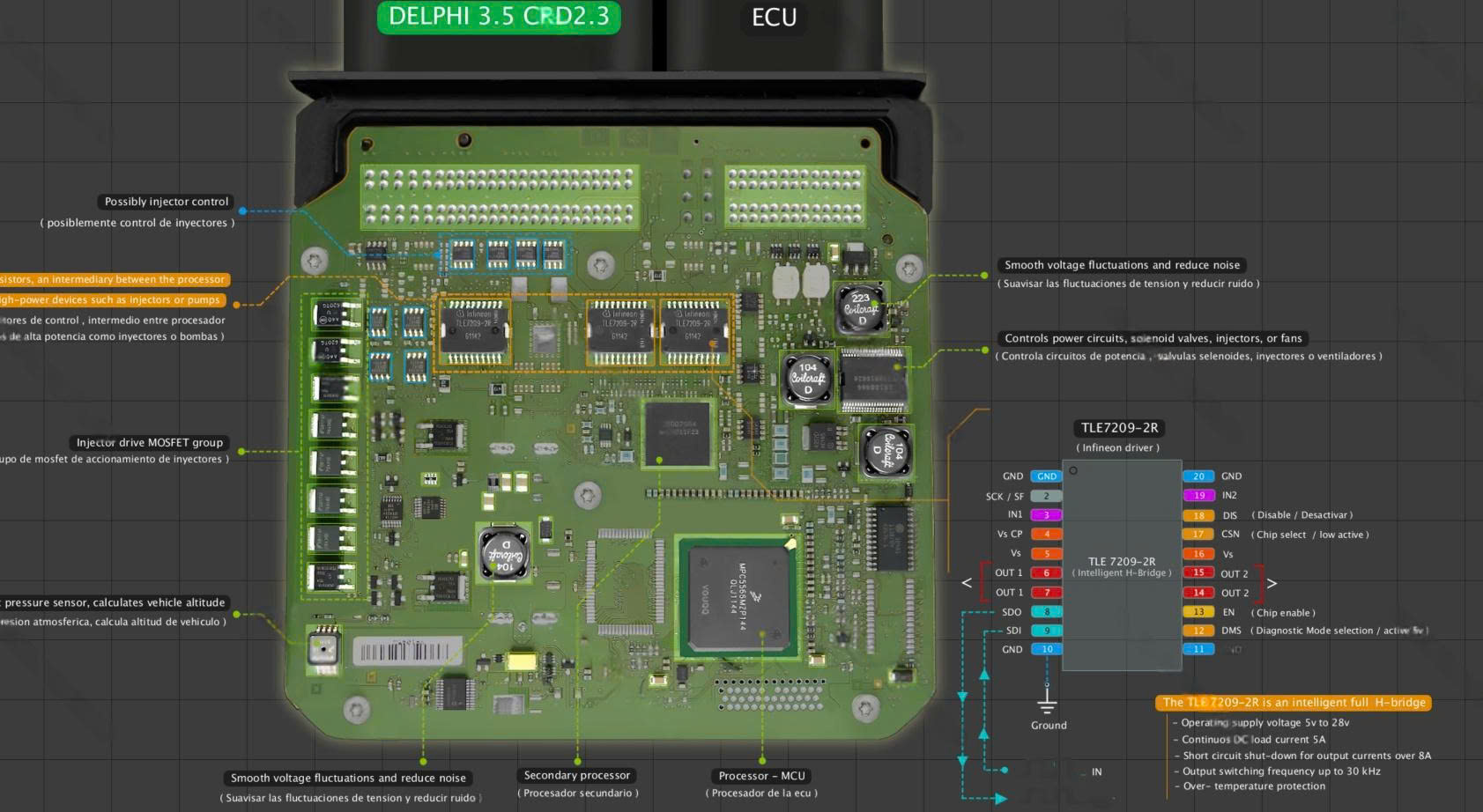

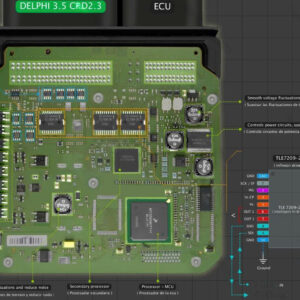

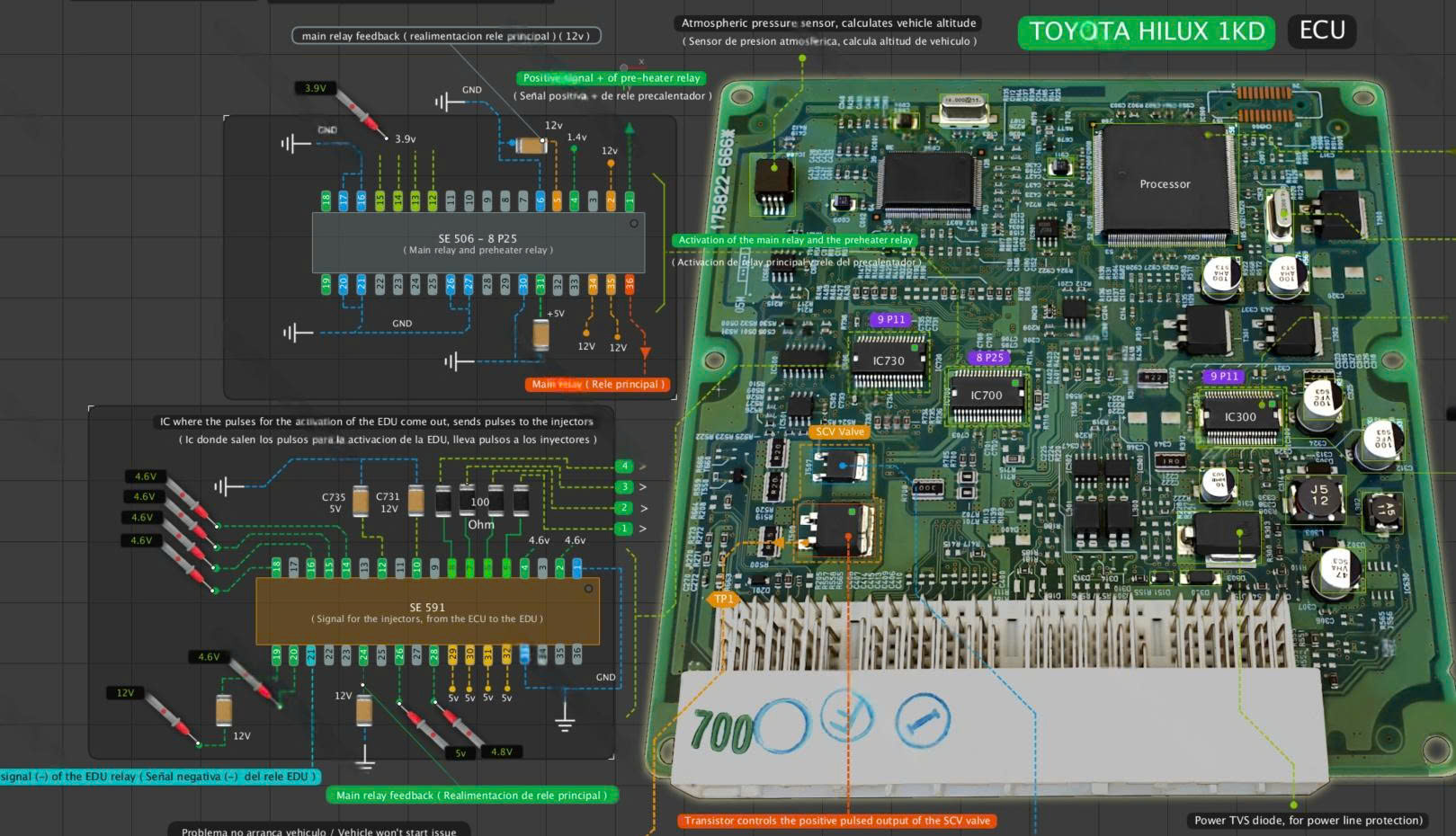

• Interactive visualization of ECU printed circuit boards (PCBs)

• Zoom, rotate and pan functions for detailed board inspection

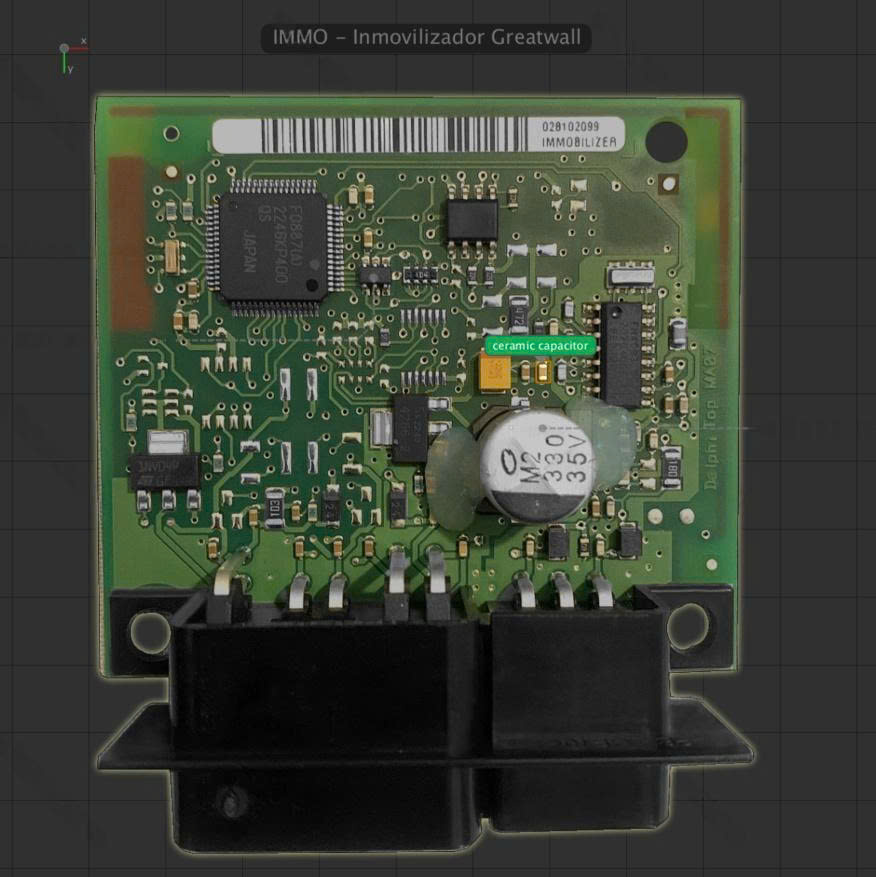

• Mouse-over component identification with detailed technical information

• Displays component functions, specifications, common failure points and repair suggestions

• Designed to support real-world ECU troubleshooting at PCB level

Extensive ECU Database

• Supports a large database with over 200 ECU models

• Coverage includes major ECU manufacturers such as:

  • Bosch (M/ME series, EDC series)

  • Magneti Marelli

  • Delphi

  • Siemens / Continental

Target Users

• Independent ECU repair technicians

• Professional automotive repair workshops

• ECU remanufacturing and electronics repair laboratories

Practical Applications

• PCB-level ECU diagnostics and fault analysis

• Component identification and circuit understanding

• Training and skill development for ECU repair specialists

• Improving repair accuracy and reducing diagnostic time

PCB Solution FBL by Movilcenter Lab is an essential tool for professionals who need deep insight into ECU PCB architecture to perform precise, reliable and efficient electronic repairs.
