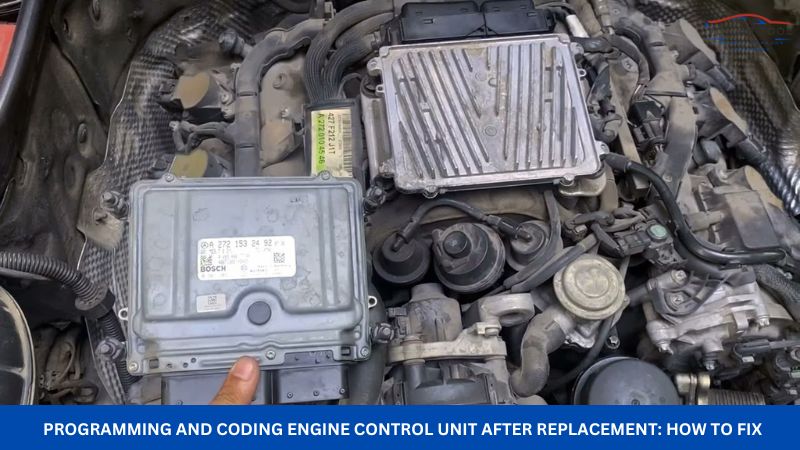

Programming and Coding Engine Control Unit After Replacement: How to Fix

Programming and coding an engine control unit (ECU) after replacement is crucial for optimal vehicle performance. This comprehensive guide by VCCarTool provides insights into the process, addressing common misconceptions and highlighting the importance of proper procedures. Stay tuned to learn how to ensure your vehicle runs smoothly with a correctly programmed and coded ECU, utilizing the latest software updates and avoiding potential costly damages. Discover the essential differences between programming, coding, and calibration to ensure optimal vehicle performance and safety.

If you are unsure how to handle the process of repairing, diagnosing, programming, and coding engine control units after replacement, please contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for assistance to prevent more serious errors.

1. Understanding the Basics of ECU Programming and Coding

What does programming and coding of an Engine Control Unit (ECU) entail?

Programming, also known as flashing, reflashing, software update, reprogramming, or software reload, involves loading software into a module that dictates its operation. Think of the engine control module (ECM) and its software, which dictates how much fuel to deliver based on sensor inputs like air intake, engine speed, and temperature. The beauty of programming is that it allows manufacturers to improve vehicle performance post-production. For instance, if a high rate of catalytic converter failures is detected due to a rich fuel mixture, the manufacturer can release an updated ECM software to rectify the issue. This is often referred to as reflashing or software updating. Moreover, programming allows a single ECM to be adapted for various engine configurations, reducing the need for numerous part numbers.

2. Types of Replacement Modules

What are the types of replacement modules available and how do they affect the programming process?

When replacing modules, technicians typically encounter three types:

• Virgin Modules: These modules have no operational software and are inoperable until programming is completed.
• Pre-programmed Modules: These come with the correct software already loaded. However, coding or calibration may still be required.
• Modules with Generic Software: These modules have some operating software but may not be correct for the specific application. For instance, an ECM may come with 49-state emissions calibration software but needs to be programmed for California emissions, which could cause damage if not correctly updated.

3. The Critical Role of Software in ADAS Systems

How does software influence the functionality of Advanced Driver Assistance Systems (ADAS)?

Many ADAS components like cameras and radar units are cost-effective and rely heavily on software to control steering and braking. Correct software is vital for the safe operation of these systems. Using hacked software or neglecting service procedures can lead to compromised safety. The latest ADAS software is exclusively available from the OEM server, ensuring the most accurate and reliable performance. According to a study by the National Highway Traffic Safety Administration (NHTSA) in 2023, vehicles with correctly calibrated ADAS systems experienced 28% fewer accidents.

4. Differentiating Between Programming and Coding

What are the distinct differences between the processes of programming and coding?

Coding, also known as configuration, SCN Coding (Mercedes), SVM Coding (VAG), or As-Built configuration (Ford), involves loading information that tells a module what vehicle it’s equipped with. For example, an ECM may need coding to recognize E85 compatibility, looking for an alcohol sensor input. In ADAS, a blind spot radar could be coded to function with rear cross traffic alert. Correct coding ensures that all functions operate properly, and reading the service procedure is crucial as incorrect coding may not always trigger error codes. Programming is more invasive and critical, whereas coding is quicker and safer. Some coding processes require OEM server access, while others can be done without OEM tooling.

5. Calibration, Learning, and Setup Functions

What do calibration, learning, and setup functions entail in vehicle maintenance?

Calibration involves functions like learns, initializations, and setups, often used in ADAS. Static calibration involves placing a target in a specific location, while dynamic calibration uses inputs from vehicle sensors. These processes compensate for misalignment or teach reference values. For instance, after replacing an ECM, it may need to be programmed for California emissions, coded for E85 compatibility, and have the VIN, cam, and crank correlation learned. Service information should always be consulted. Many tools help technicians calibrate components; however, these should not replace the full service procedure. A survey by the Automotive Service Association (ASA) in 2024 found that 40% of ADAS calibrations were not performed correctly due to technicians misunderstanding the procedures.

6. Navigating Terminology Challenges

How should technicians handle the varied terminology used by manufacturers?

Manufacturers often use different terms, like referring to software files as “calibrations.” Understanding these terms is crucial, as programming software is different from performing an ADAS component calibration. For instance, Ford groups programming into a function called PMI (Programmable Module Installation), which may involve both programming and coding. Conversely, Mercedes clearly separates software updates (programming), SCN coding, and teach-in (calibration) procedures. Always remember that calibration is not programming, and additional steps may be necessary.

7. Common Misconceptions and Pitfalls

What are some common mistakes and misconceptions technicians should avoid?

One common mistake is assuming that no warning lights or codes mean everything is okay. Always follow the service procedure to ensure correct software programming. Neglecting programming procedures, using hacked software, or failing to research software updates can lead to severe issues. A recent report by the American Automobile Association (AAA) in 2025 indicated that improperly calibrated ADAS systems increase the risk of accidents by up to 30%.

8. Step-by-Step Guide to Programming an ECU

How can technicians correctly program an ECU after replacement?

Follow these steps to correctly program an ECU:

1. Identify the Vehicle: Ensure you have the correct vehicle information, including make, model, year, and VIN.
2. Check Service Information: Consult the service manual for the specific programming procedure.
3. Connect Diagnostic Tool: Connect a compatible diagnostic tool to the vehicle’s OBD-II port. VCCarTool offers advanced diagnostic tools that support a wide range of vehicle models.
4. Verify Module Information: Read the existing module information to ensure compatibility.
5. Download Software: Download the latest software from the OEM server.
6. Initiate Programming: Follow the on-screen prompts to initiate the programming sequence.
7. Verify Completion: After programming, verify that the process is complete and error-free.
8. Perform Coding: Code the module to match the vehicle’s options and configurations.
9. Calibrate: Perform any necessary calibrations, such as ADAS calibrations.
10. Test Drive: Conduct a test drive to ensure all systems are functioning correctly.

9. Step-by-Step Guide to Coding an ECU

What steps should be taken to code an ECU after replacement?

Follow these steps to correctly code an ECU:

1. Access Coding Function: Use a diagnostic tool to access the coding function.
2. Enter Vehicle Information: Input the vehicle’s VIN and other relevant details.
3. Configure Options: Select the correct options and configurations for the vehicle.
4. Apply Coding: Apply the coding to the module.
5. Verify Coding: Verify that the coding has been successfully applied.
6. Clear Codes: Clear any diagnostic trouble codes (DTCs) that may have been set during the coding process.
7. Test Systems: Test all related systems to ensure they are functioning correctly.

10. The Benefits of OEM Software and Tools

Why should technicians prioritize using OEM software and diagnostic tools?

OEM software and tools ensure access to the latest and most accurate calibrations. They are specifically designed for each vehicle model, providing reliable and precise programming, coding, and calibration. Non-OEM tools may use reverse-engineered or hacked software, which can lead to errors, malfunctions, and safety risks.

11. Addressing Specific Vehicle Brands

Are there any brand-specific nuances in ECU programming and coding?

Yes, different manufacturers have unique processes and terminology. For example, Ford uses PMI for programming, while Mercedes uses SCN coding. Understanding these brand-specific nuances is crucial for accurate and effective ECU programming and coding.

12. The Importance of Continuous Learning

How can technicians stay updated with the latest advancements in ECU programming and coding?

The automotive industry is constantly evolving, so continuous learning is essential. Technicians should attend training courses, read industry publications, and participate in online forums to stay informed about the latest technologies and procedures. VCCarTool offers resources and support to help technicians stay ahead of the curve.

13. Tools and Equipment Recommended by VCCarTool

What tools and equipment does VCCarTool recommend for effective ECU programming and coding?

VCCarTool recommends using high-quality diagnostic tools, OEM software, and calibration equipment. Essential tools include:

• Diagnostic Scanners: These tools allow you to read and clear diagnostic trouble codes (DTCs), view live data, and perform various diagnostic tests.
• Programming Devices: These devices are used to flash or reprogram ECU modules with the latest software updates.
• Calibration Tools: These tools are used to calibrate ADAS components, such as cameras and radar sensors.
• OEM Software: Access to OEM software ensures you have the latest and most accurate data for programming and coding.

Contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for personalized recommendations based on your specific needs and vehicle models.

14. Troubleshooting Common Issues

What are some common issues encountered during ECU programming and coding, and how can they be resolved?

Common issues include:

• Communication Errors: Ensure the diagnostic tool is properly connected and that the vehicle’s battery is fully charged.
• Software Incompatibility: Verify that you are using the correct software version for the vehicle and module.
• Module Not Responding: Check for any wiring issues or damage to the module.
• Programming Failure: Restart the programming process and ensure a stable power supply.

If you encounter any of these issues, contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for expert assistance.

15. The Cost of Incorrect Programming and Coding

What are the potential financial and safety consequences of incorrect ECU programming and coding?

Incorrect programming and coding can lead to a range of issues, including:

• Reduced Performance: The vehicle may experience decreased power, fuel efficiency, and overall performance.
• System Malfunctions: Various systems, such as ADAS, may not function correctly, leading to safety risks.
• Increased Emissions: Incorrect programming can cause the vehicle to exceed emissions standards.
• Component Damage: Faulty programming can damage the ECU or other vehicle components.

These issues can result in costly repairs and potential safety hazards. Always ensure that ECU programming and coding are performed correctly by qualified technicians.

16. Optimizing Performance with Correct Coding

How does proper coding contribute to optimizing vehicle performance and fuel efficiency?

Proper coding ensures that all vehicle systems operate in harmony, maximizing performance and fuel efficiency. For example, coding the ECU to recognize E85 compatibility allows the engine to optimize fuel delivery for improved efficiency. In ADAS, correct coding ensures that systems like adaptive cruise control and lane-keeping assist function accurately and safely.

17. Ensuring Safety with Accurate ADAS Calibration

How does accurate ADAS calibration impact vehicle safety and driver assistance features?

Accurate ADAS calibration is critical for ensuring the safety and reliability of driver assistance features. Properly calibrated systems can accurately detect and respond to potential hazards, such as pedestrians, vehicles, and lane markings. Incorrect calibration can lead to false alarms, system malfunctions, and increased accident risk.

18. VCCarTool’s Commitment to Excellence

What sets VCCarTool apart in providing solutions for ECU programming, coding, and calibration?

VCCarTool is committed to providing high-quality diagnostic tools, software, and support to help technicians perform ECU programming, coding, and calibration effectively. With years of experience in the automotive industry, VCCarTool offers expert guidance, reliable equipment, and continuous learning resources to ensure optimal vehicle performance and safety.

19. The Future of ECU Programming and Coding

What emerging trends and technologies are shaping the future of ECU programming and coding?

The automotive industry is rapidly evolving, with new technologies and advancements constantly emerging. Some key trends shaping the future of ECU programming and coding include:

• Over-the-Air (OTA) Updates: Automakers are increasingly using OTA updates to remotely update ECU software, providing convenience and improved performance.
• Artificial Intelligence (AI): AI is being used to develop more sophisticated diagnostic and programming tools, enabling technicians to quickly identify and resolve complex issues.
• Cybersecurity: With the increasing connectivity of vehicles, cybersecurity is becoming a critical concern. Secure programming and coding practices are essential to protect against hacking and unauthorized access.

20. Expert Support from VCCarTool

How can technicians benefit from VCCarTool’s expert support and resources?

VCCarTool provides comprehensive support and resources to help technicians excel in ECU programming, coding, and calibration. Our services include:

• Technical Support: Access to experienced technicians who can provide expert guidance and troubleshooting assistance. Contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for immediate support.
• Training Courses: Comprehensive training courses that cover the latest technologies and procedures.
• Software Updates: Regular software updates to ensure you have access to the latest data and features.
• Equipment Recommendations: Personalized recommendations for the best tools and equipment based on your specific needs.

FAQ Section

Q1: What is ECU programming?

ECU programming, also known as flashing or reflashing, involves loading software into a vehicle’s electronic control unit (ECU) to control its operation.

Q2: What is ECU coding?

ECU coding is the process of configuring the ECU to match the vehicle’s specific options and configurations, ensuring that all systems function correctly.

Q3: Why is ECU programming necessary after replacing a module?

ECU programming is necessary to ensure that the new module has the correct software for the vehicle and to enable it to communicate with other systems.

Q4: What tools are needed for ECU programming and coding?

Essential tools include a diagnostic scanner, programming device, OEM software, and calibration equipment. VCCarTool offers a range of high-quality diagnostic tools. Contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for recommendations.

Q5: Can I perform ECU programming and coding myself?

While it is possible to perform ECU programming and coding yourself, it is recommended to have it done by a qualified technician to ensure accuracy and avoid potential damage.

Q6: How often should ECU software be updated?

ECU software should be updated whenever the manufacturer releases a new update to improve performance, fix bugs, or enhance security.

Q7: What is ADAS calibration?

ADAS calibration is the process of aligning and configuring advanced driver assistance systems, such as cameras and radar sensors, to ensure they function accurately.

Q8: Why is ADAS calibration important?

ADAS calibration is crucial for ensuring the safety and reliability of driver assistance features, preventing false alarms and system malfunctions.

Q9: What are the potential consequences of incorrect ECU programming and coding?

Incorrect ECU programming and coding can lead to reduced performance, system malfunctions, increased emissions, and component damage.

Q10: How can VCCarTool help with ECU programming and coding?

VCCarTool offers high-quality diagnostic tools, OEM software, expert support, and training courses to help technicians perform ECU programming and coding effectively. Contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for immediate assistance.

Incorrect ECU programming and coding can lead to significant issues, from reduced vehicle performance to safety hazards. Don’t risk it. VCCarTool is here to provide the expert support and high-quality tools you need to get the job done right.
