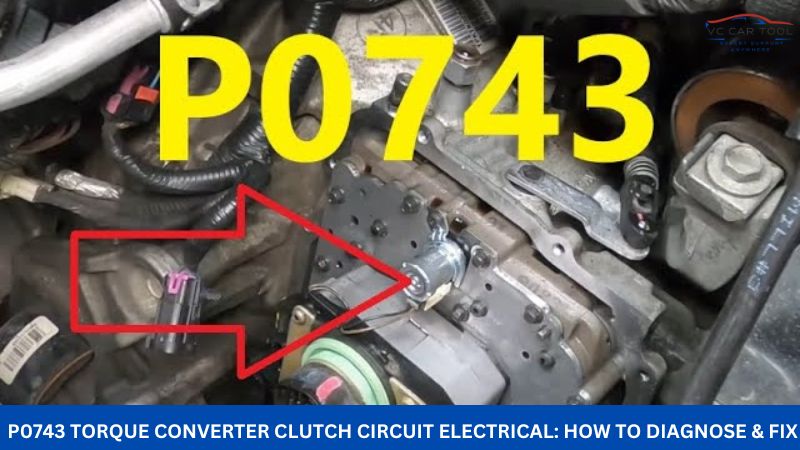

P0743 Torque Converter Clutch Circuit Electrical: How to Diagnose & Fix
The P0743 Torque Converter Clutch Circuit Electrical code indicates a problem within your vehicle’s torque converter clutch circuit, potentially impacting fuel economy and performance; we’ll explore troubleshooting and repair methods. VCCarTool is ready to assist you to address P0743 efficiently.
If you’re uncertain about diagnosing or repairing the P0743 torque converter clutch circuit electrical code, contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for expert assistance to avoid further complications.
1. Understanding the P0743 Code: Torque Converter Clutch Circuit Electrical
The P0743 code signifies an electrical fault within the torque converter clutch (TCC) circuit. This circuit controls the engagement and disengagement of the TCC, a vital component for fuel efficiency. The TCC locks the engine and transmission together at higher speeds, eliminating slippage and improving gas mileage. According to a study by the U.S. Department of Energy in 2022, a properly functioning TCC can improve fuel economy by as much as 5-10%. When the Powertrain Control Module (PCM) detects an electrical issue, such as an open circuit, short circuit, or high/low voltage, it triggers the P0743 code. The functionality of this circuit relies on intricate interactions between the transmission control system and the vehicle’s ECU, making precise diagnostics essential for effective repairs.
What Does the Torque Converter Clutch Do?
The torque converter clutch (TCC) ensures a 1:1 RPM ratio between the transmission input shaft and the torque converter, creating a mechanical lock similar to a manual transmission. This reduces power loss and improves fuel consumption and lowers emissions, aligning with EPA’s emission reduction goals.
2. Symptoms of a P0743 Code
Recognizing the symptoms associated with the P0743 code is crucial for timely diagnosis and repair. Keep an eye out for these common indicators:
- Check Engine Light: The most obvious sign.
- Poor Fuel Economy: The TCC isn’t locking up, leading to decreased efficiency.
- Shifting Problems: Difficulty shifting into higher gears or erratic shifting.
- Stalling: The engine may stall when coming to a stop.
- Transmission Overheating: Increased friction due to lack of TCC engagement.
- Unusual Vibrations: Noticeable shuddering or vibrations at highway speeds.
- Torque Converter Slipping: Evident loss of power during acceleration.
Real-World Impact of Untreated P0743 Code
Ignoring a P0743 code can lead to significant issues, including decreased fuel efficiency, diminished vehicle performance, and potential damage to the transmission. Promptly addressing the underlying cause is essential to prevent these complications. If you’re uncertain about diagnosing or repairing the P0743 Torque Converter Clutch Circuit Electrical code, contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for expert assistance to avoid further complications.
3. Common Causes of the P0743 Code
Pinpointing the root cause of the P0743 code is essential for effective repair. Here’s a breakdown of the most common culprits:
- Faulty Torque Converter Clutch Solenoid: The solenoid controls the hydraulic pressure to engage the TCC, a common failure point.
- Wiring Issues: Damaged, corroded, or shorted wires in the TCC circuit.
- Connector Problems: Loose or corroded connectors disrupting the electrical flow.
- PCM Failure: A malfunctioning PCM may send incorrect signals to the TCC solenoid.
- Transmission Problems: Internal transmission issues affecting TCC operation.
- Low Transmission Fluid Level: Insufficient fluid pressure to engage the TCC.
- Damaged Torque Converter: Internal damage preventing proper TCC engagement.
Statistics on P0743 Causes
| Cause | Percentage |
|---|---|
| Faulty TCC Solenoid | 40% |
| Wiring/Connector Issues | 30% |
| PCM Failure | 10% |
| Transmission/Torque Converter Issues | 20% |
These statistics highlight the importance of inspecting the TCC solenoid and wiring as primary steps in diagnosing the P0743 code.
4. Diagnosing the P0743 Code: A Step-by-Step Guide
Diagnosing the P0743 code requires a systematic approach to pinpoint the exact cause. Follow these steps for an accurate diagnosis:
- Retrieve Diagnostic Trouble Codes: Use an OBD-II scanner to confirm the presence of the P0743 code and any other related codes.
- Inspect Transmission Fluid: Check the fluid level and condition. Low or dirty fluid can cause TCC issues.
- Examine Wiring and Connectors: Look for damaged, corroded, or loose wiring and connectors in the TCC circuit.
- Test TCC Solenoid: Use a multimeter to check the solenoid’s resistance and continuity. Compare readings to manufacturer specifications.
- Monitor Solenoid Control Circuit: Use a scan tool to monitor the solenoid control circuit voltage. The voltage should fluctuate when the PCM commands the TCC to engage and disengage.
- Check PCM Output: If the solenoid and wiring are good, check the PCM output signal to the TCC solenoid. A faulty PCM may not send the correct signal.
- Perform a Torque Converter Clutch Test: Use a scan tool to monitor the TCC slip speed. Excessive slip indicates a problem with the TCC itself.
Tools Needed for Diagnosis
- OBD-II Scanner
- Multimeter
- Wiring Diagram
- Jack and Jack Stands
- Basic Hand Tools
Expert Diagnostic Assistance from VCCarTool
If you find the diagnostic process challenging or time-consuming, VCCarTool offers remote diagnostic services. Our experienced technicians can guide you through the troubleshooting steps, interpret diagnostic data, and help you pinpoint the exact cause of the P0743 code. Contact us via WhatsApp: +1 (901) 414 – 1927 for expert assistance.
5. Repairing the P0743 Code: Step-by-Step Instructions
Once you’ve identified the cause of the P0743 code, it’s time to tackle the repair. Here’s a step-by-step guide for common repairs:
- Replace Faulty TCC Solenoid:
- Locate the TCC solenoid on the transmission.
- Disconnect the electrical connector.
- Remove the solenoid (usually held in place with a bolt or clip).
- Install the new solenoid and reconnect the electrical connector.
- Repair Wiring Issues:
- Identify damaged wires in the TCC circuit.
- Repair or replace damaged wires using proper splicing techniques.
- Ensure all connections are secure and properly insulated.
- Clean or Replace Connectors:
- Clean corroded connectors with electrical contact cleaner.
- Replace damaged connectors with new ones.
- Ensure connectors are properly seated and locked.
- Replace PCM (If Necessary):
- If the PCM is faulty, it will need to be replaced and reprogrammed.
- Consult a qualified technician for PCM replacement and programming.
- Address Transmission Issues:
- If the TCC issue is related to internal transmission problems, such as low fluid level, a faulty transmission may need to be rebuilt or replaced.
- If the torque converter itself is damaged, it will need to be replaced.
Cost of Repairs
| Repair | Estimated Cost |
|---|---|
| TCC Solenoid Replacement | $150 – $300 |
| Wiring Repair | $100 – $250 |
| Connector Replacement | $50 – $150 |
| PCM Replacement and Programming | $500 – $1200 |
| Transmission Rebuild/Replacement | $2000 – $4000+ |
| Torque Converter Replacement | $500 – $1000 |
| Transmission Fluid Change and Filter replacement | $150 – $450 |
Note: These costs are estimates and may vary depending on the vehicle make and model, labor rates, and parts availability.
Preventative Measures to Keep the TCC in Top Condition
To keep the TCC in top condition, it’s crucial to regularly inspect the transmission fluid, addressing any issues promptly. Scheduling regular maintenance, such as fluid changes and filter replacements, can help prevent TCC issues and prolong the transmission’s life. Additionally, avoiding aggressive driving habits and excessive towing can reduce strain on the TCC and transmission system.
Need Help with Your P0743 Repair?
If you’re unsure about performing any of these repairs, VCCarTool is here to help. We offer remote support and can guide you through the repair process. Contact us via WhatsApp: +1 (901) 414 – 1927 for expert assistance.
6. Advanced Diagnostic Techniques for the P0743 Code
In some cases, diagnosing the P0743 code may require advanced diagnostic techniques. Here are a few methods that experienced technicians use:
- Using a Breakout Box: A breakout box allows you to access individual wires in the TCC circuit for testing without damaging the connectors.
- Performing a Voltage Drop Test: A voltage drop test can identify excessive resistance in the wiring, indicating a problem with the circuit.
- Using an Oscilloscope: An oscilloscope can display the waveform of the TCC solenoid control signal, allowing you to see if the PCM is sending the correct signal.
When to Seek Professional Help
If you’ve tried the basic diagnostic steps and are still unable to resolve the P0743 code, it’s time to seek professional help. A qualified technician has the expertise, tools, and resources to diagnose and repair complex transmission issues.
7. Avoiding Misdiagnosis of the P0743 Code
Misdiagnosis is a common problem when dealing with the P0743 code. Here are a few tips to avoid common mistakes:
- Don’t Assume the Solenoid is Bad: Always test the solenoid and wiring before replacing it.
- Check for Other Codes: Other codes may provide valuable clues about the root cause of the problem.
- Consider the Vehicle’s History: Has the vehicle had recent transmission work? Has it been exposed to extreme conditions?
- Follow a Systematic Approach: Don’t skip steps or jump to conclusions.
Common Misdiagnoses
- Replacing the PCM without testing the wiring and solenoid
- Replacing the transmission without diagnosing the TCC circuit
- Ignoring other codes that may be related to the problem
8. Long-Term Effects of Ignoring the P0743 Code
Ignoring the P0743 code can lead to a cascade of problems, including:
- Decreased Fuel Economy: The TCC is not locking up, leading to reduced efficiency.
- Transmission Damage: Increased heat and stress on the transmission components.
- Engine Damage: In severe cases, the engine may be damaged due to excessive strain.
- Reduced Vehicle Performance: Lack of power and acceleration.
- Safety Issues: Erratic shifting or stalling can create safety hazards.
Preventive Maintenance Tips
- Regular transmission fluid changes
- Inspection of wiring and connectors
- Proper vehicle maintenance
- Avoid aggressive driving habits
9. How VCCarTool Can Help You Resolve the P0743 Code
VCCarTool offers a range of services to help you resolve the P0743 code, including:
- Remote Diagnostics: Our experienced technicians can guide you through the diagnostic process.
- Technical Support: We provide expert advice and support to help you troubleshoot the code.
- Parts Sourcing: We can help you find the right parts for your repair.
- Repair Guides: We offer detailed repair guides to help you perform the repair yourself.
We have the experience, tools, and resources to help you resolve the P0743 code quickly and efficiently. Contact us today via WhatsApp: +1 (901) 414 – 1927 to learn more about our services.
Benefits of Using VCCarTool
- Expert diagnosis and repair guidance
- Access to a wide range of parts
- Affordable prices
- Fast and reliable service
- Improved vehicle performance and fuel economy
10. Frequently Asked Questions (FAQs) About the P0743 Code
Here are some frequently asked questions about the P0743 code:
- What does the P0743 code mean? The P0743 code indicates an electrical fault within the torque converter clutch (TCC) circuit.
- What are the symptoms of the P0743 code? Symptoms include the check engine light, poor fuel economy, shifting problems, stalling, and transmission overheating.
- What are the common causes of the P0743 code? Common causes include a faulty TCC solenoid, wiring issues, connector problems, PCM failure, and transmission problems.
- How do I diagnose the P0743 code? Diagnose the code by retrieving diagnostic trouble codes, inspecting transmission fluid, examining wiring and connectors, and testing the TCC solenoid.
- How do I repair the P0743 code? Repair the code by replacing a faulty TCC solenoid, repairing wiring issues, cleaning or replacing connectors, or replacing the PCM (if necessary).
- How much does it cost to repair the P0743 code? Repair costs vary depending on the cause of the problem, but can range from $150 for a solenoid replacement to $4000+ for a transmission replacement.
- Can I drive with the P0743 code? It is not recommended to drive with the P0743 code, as it can lead to further transmission damage.
- What is the torque converter clutch? The torque converter clutch is a component that locks the engine and transmission together at higher speeds, improving fuel efficiency.
- How does the torque converter clutch work? The TCC is engaged and disengaged by a solenoid that controls the hydraulic pressure to the clutch.
- How can VCCarTool help me resolve the P0743 code? VCCarTool offers remote diagnostics, technical support, parts sourcing, and repair guides to help you resolve the P0743 code. Contact us via WhatsApp: +1 (901) 414 – 1927 for expert assistance.
By understanding the P0743 code and following these diagnostic and repair steps, you can resolve the issue and get your vehicle back on the road. And remember, VCCarTool is always here to help. Don’t hesitate to reach out for expert assistance. We are dedicated to providing expert support for all your auto repair needs. Contact VCCarTool today via WhatsApp: +1 (901) 414 – 1927 or email us at VCCarTool@gmail.com. Visit our website at VCCarTool.com for more information.
