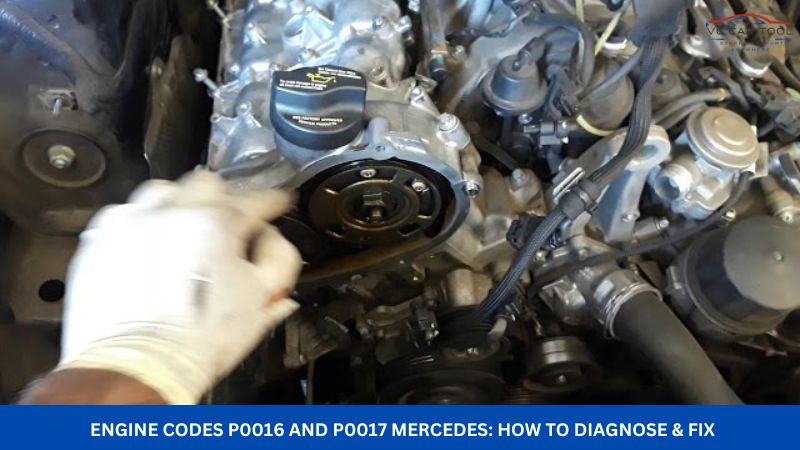

**Engine Codes P0016 and P0017 Mercedes: How to Diagnose & Fix**

Are you grappling with engine codes P0016 and P0017 on your Mercedes and looking for expert solutions? This comprehensive guide breaks down the causes, diagnostic steps, and repair solutions to get your Mercedes back on the road with optimal performance. Let’s dive into resolving these perplexing powertrain troubles.

If you’re uncertain about diagnosing or repairing engine codes P0016 and P0017 on your Mercedes, contact VCCarTool via WhatsApp: +1 (901) 414 – 1927 for expert assistance to avoid causing more significant issues.

1. Understanding Engine Codes P0016 and P0017

What do engine codes P0016 and P0017 signify? These trouble codes indicate a misalignment between the crankshaft and camshaft positions in your Mercedes. Specifically:

• P0016: Crankshaft Position – Camshaft Position Correlation (Bank 1, Sensor A)
• P0017: Crankshaft Position – Camshaft Position Correlation (Bank 1, Sensor B)

In simpler terms, the engine control unit (ECU) detects that the camshaft and crankshaft are not synchronized as expected. This desynchronization can lead to significant performance issues.

1.1. Decoding the Terminology

To fully grasp the implications of these codes, let’s clarify some key terms:

• Crankshaft: This component converts the reciprocating motion of the pistons into rotational motion, which drives the vehicle.
• Camshaft: The camshaft controls the opening and closing of the engine valves, synchronizing with the crankshaft to ensure proper combustion.
• Bank 1: Refers to the side of the engine that contains cylinder number one. In an inline engine, there is only one bank. In a V-type engine, there are two banks.
• Sensor A/B: These refer to specific camshaft position sensors. Sensor A usually corresponds to the intake camshaft, while Sensor B corresponds to the exhaust camshaft.

Understanding these basics is crucial for effective diagnosis and repair.

2. Common Symptoms of P0016 and P0017 in Mercedes

What are the telltale signs when these codes appear? Recognizing the symptoms can help you address the issue promptly. Common symptoms include:

• Check Engine Light (CEL): This is the most obvious sign. The CEL will illuminate on your dashboard.
• Reduced Engine Power: You may notice a significant decrease in acceleration and overall engine performance.
• Rough Idle: The engine may vibrate or run unevenly, especially when idling.
• Stalling: The engine might stall unexpectedly, particularly at low speeds.
• Poor Fuel Economy: A desynchronized engine can lead to inefficient fuel consumption.
• Engine Noise: Unusual noises, such as ticking or rattling, may be present.

2.1. Impact on Driving Experience

These symptoms collectively degrade the driving experience. Imagine pulling onto a busy highway and experiencing sluggish acceleration—or worse, the engine stalling mid-turn. Addressing these issues promptly ensures a safer and more enjoyable ride.

3. Potential Causes of Engine Codes P0016 and P0017

What triggers these codes in your Mercedes? Several factors can disrupt the synchronization between the crankshaft and camshaft:

• Faulty Camshaft Position Sensor(s): The sensors may fail to accurately read the camshaft’s position.
• Faulty Crankshaft Position Sensor: A malfunctioning crankshaft sensor can provide incorrect data to the ECU.
• Timing Chain Issues: A stretched or worn timing chain can cause timing misalignment.
• Worn Timing Chain Tensioner: The tensioner maintains proper chain tension; failure can lead to slack.
• Camshaft or Crankshaft Sprocket Problems: Damaged or worn sprockets can affect timing.
• Oil Control Valve (OCV) Issues: The OCV regulates oil flow to the camshaft phasers, and malfunctions can cause timing issues.
• Wiring or Connector Problems: Damaged or corroded wiring to the sensors can disrupt signals.
• Balance Shaft Issues: In certain Mercedes models (like the M272 engine), a worn balance shaft sprocket is a known problem.
• Low Oil Pressure: Insufficient oil pressure can affect the performance of hydraulic timing components.

3.1. The Balance Shaft Issue in M272 Engines

One of the most notorious causes, particularly in Mercedes M272 engines, is the failure of the balance shaft sprocket. This issue is so prevalent that it led to a class-action lawsuit. A worn balance shaft can cause significant timing misalignment, triggering P0016 and P0017.

4. Diagnosing P0016 and P0017: A Step-by-Step Guide

How can you accurately diagnose these codes? A systematic approach is crucial to pinpoint the root cause.

4.1. Preliminary Checks

1. Read the Codes: Use an OBD-II scanner to confirm the presence of P0016 and P0017.
2. Visual Inspection: Check the engine bay for any obvious signs of damage, such as frayed wires, oil leaks, or loose connections.
3. Oil Level and Condition: Ensure the engine has the correct oil level and that the oil is clean. Low or dirty oil can affect timing components.

4.2. Sensor Testing

1. Camshaft Position Sensors:

   • Use a multimeter to check the sensor’s resistance. Compare the readings with the manufacturer’s specifications.
   • Inspect the sensor connectors for corrosion or damage.
   • Consider swapping the camshaft sensors between banks to see if the code follows the sensor.

2. Crankshaft Position Sensor:

   • Test the crankshaft sensor’s resistance and signal output using a multimeter and oscilloscope.
   • Ensure the sensor is properly seated and the connector is secure.

3. Signal Analysis with an Oscilloscope:

   • Use an oscilloscope to analyze the signals from both the camshaft and crankshaft sensors. This can help identify signal irregularities that a multimeter might miss.

4.3. Timing Chain Inspection

1. Visual Inspection:

   • Remove the valve cover to inspect the timing chain. Look for signs of wear, such as excessive slack or damage to the chain links.
   • Check the timing chain guides and tensioner for wear or breakage.

2. Timing Marks Alignment:

   • Rotate the engine to Top Dead Center (TDC) on cylinder number one. Verify that the timing marks on the camshaft and crankshaft sprockets align correctly. Misalignment indicates a stretched timing chain or other timing component issues.

3. Timing Chain Stretch Measurement:

   • Use specialized tools to measure the timing chain stretch. Compare the measurement to the manufacturer’s specifications to determine if the chain needs replacement.

4.4. Advanced Diagnostics

1. Oil Pressure Test:

   • Use a pressure gauge to check the oil pressure. Low oil pressure can affect the performance of the camshaft phasers and other timing components.

2. Oil Control Valve (OCV) Testing:

   • Remove and inspect the OCV for debris or damage.
   • Test the OCV’s operation using a multimeter and by applying voltage to see if it actuates correctly.

3. Compression Test:

   • Perform a compression test to rule out any internal engine issues that could be affecting timing.

4. Balance Shaft Sprocket Inspection (M272 Engines):

   • This requires removing the front engine cover. Inspect the balance shaft sprocket for wear. This often involves comparing the sprocket to a known good one or using specialized measurement tools.

4.5. Using Diagnostic Tools for Efficiency

Diagnostic tools like the Autel MaxiSys MS906BT or the Launch X431 V+ can streamline the diagnostic process. These tools offer advanced functions such as:

• Live Data Streaming: Monitor the real-time data from the camshaft and crankshaft sensors.
• Actuator Testing: Activate components like the OCV to check their functionality.
• Guided Diagnostics: Follow step-by-step diagnostic procedures specific to your Mercedes model.

4.6. When to Seek Professional Help from VCCarTool

If you find the diagnostic process overwhelming or lack the necessary tools, don’t hesitate to contact VCCarTool via WhatsApp: +1 (901) 414 – 1927. Our experienced technicians can provide remote diagnostic support, helping you pinpoint the issue quickly and accurately.

5. Repair Solutions for P0016 and P0017

What are the fixes for these codes? The appropriate repair depends on the underlying cause identified during diagnosis.

5.1. Replacing Faulty Sensors

1. Camshaft Position Sensor Replacement:

   • Disconnect the negative battery terminal.
   • Locate the faulty camshaft position sensor(s).
   • Disconnect the electrical connector and remove the sensor.
   • Install the new sensor and reconnect the electrical connector.
   • Reconnect the negative battery terminal and clear the codes.

2. Crankshaft Position Sensor Replacement:

   • Follow the same steps as above, but locate the crankshaft position sensor.
   • The crankshaft sensor is often located near the crankshaft pulley or flywheel.

5.2. Addressing Timing Chain Issues

1. Timing Chain Replacement:

   • This is a complex job that requires specialized tools and expertise.
   • Remove the front engine cover, valve covers, and other necessary components to access the timing chain.
   • Align the engine to TDC and secure the camshafts and crankshaft in place.
   • Remove the old timing chain and install the new one, ensuring proper alignment of the timing marks.
   • Replace the timing chain tensioner and guides as needed.
   • Reassemble the engine and verify the timing.

2. Timing Chain Tensioner Replacement:

   • Replacing the tensioner is less involved than replacing the entire chain but still requires careful attention to timing.

5.3. Correcting Oil Control Valve (OCV) Problems

1. OCV Cleaning or Replacement:

   • Remove the OCV and inspect it for debris or damage.
   • Clean the OCV with a solvent if it is dirty.
   • If the OCV is faulty, replace it with a new one.

5.4. Repairing Wiring and Connectors

1. Wiring Repair:

   • Inspect the wiring harness for any damaged or corroded wires.
   • Repair or replace any damaged wires.
   • Use dielectric grease to protect the connectors from corrosion.

5.5. Addressing the Balance Shaft Issue (M272 Engines)

1. Balance Shaft Sprocket Replacement:

   • This is a major repair that requires extensive engine disassembly.
   • Remove the engine from the vehicle for easier access.
   • Disassemble the engine to access the balance shaft.
   • Replace the worn balance shaft sprocket with a new one.
   • Reassemble the engine and reinstall it in the vehicle.

This repair is labor-intensive, often costing between $4,000 and $7,000, depending on the shop’s labor rates and the extent of the damage.

5.6. Additional Tips for Successful Repair

• Use Quality Parts: Always use OEM or high-quality aftermarket parts to ensure reliability and longevity.
• Follow the Service Manual: Refer to the Mercedes service manual for detailed instructions and torque specifications.
• Double-Check Your Work: Before reassembling the engine, double-check all connections and alignments.

6. Cost of Repairing Engine Codes P0016 and P0017

How much should you expect to spend on these repairs? The cost varies significantly based on the cause and the repair needed.

Repair	Estimated Cost (USD)
Camshaft/Crankshaft Sensor Replacement	$150 – $400
Timing Chain Replacement	$1,500 – $3,500
Timing Chain Tensioner Replacement	$500 – $1,000
Oil Control Valve (OCV) Replacement	$200 – $500
Wiring Repair	$100 – $300
Balance Shaft Sprocket Replacement (M272)	$4,000 – $7,000

6.1. Cost-Saving Strategies

While some repairs are unavoidable, there are ways to mitigate costs:

• DIY Repairs: If you’re mechanically inclined, tackle simpler repairs like sensor replacements yourself.
• Get Multiple Quotes: Obtain quotes from several repair shops to ensure you’re getting a fair price.
• Consider Used Parts: For less critical components, consider using quality used parts from reputable sources.

7. Preventing Future Issues

How can you prevent these codes from recurring? Proactive maintenance is key.

7.1. Regular Maintenance

1. Scheduled Oil Changes: Adhere to the manufacturer’s recommended oil change intervals.
2. Use Quality Oil: Use the correct type and viscosity of oil specified for your Mercedes.
3. Timing Chain Inspection: Have the timing chain inspected during routine maintenance, especially as the vehicle ages.

7.2. Monitor Engine Performance

1. Listen for Unusual Noises: Pay attention to any unusual engine noises, such as ticking or rattling.
2. Watch for Performance Changes: Be aware of any changes in engine performance, such as reduced power or rough idling.

8. VCCarTool: Your Partner in Mercedes Diagnostics and Repair

Why choose VCCarTool for your Mercedes diagnostic and repair needs? We offer:

• Expertise: Our technicians have extensive experience with Mercedes vehicles and their specific issues.
• Remote Diagnostic Support: We can provide remote assistance, helping you diagnose the problem accurately.
• Quality Parts and Tools: We offer high-quality diagnostic tools and OEM parts to ensure reliable repairs.
• Customer Support: Our dedicated support team is available to answer your questions and provide guidance throughout the repair process.

8.1. How VCCarTool Can Help

1. Remote Diagnostics: Connect with our technicians via WhatsApp: +1 (901) 414 – 1927 for real-time diagnostic support.
2. Parts and Tools: Purchase diagnostic tools and OEM parts through our website: vccartool.com.
3. Expert Advice: Get personalized advice and guidance from our experienced technicians.

9. Real-World Examples: Case Studies

How have others resolved these issues? Let’s look at a few real-world examples.

9.1. Case Study 1: Camshaft Sensor Failure

• Vehicle: 2008 Mercedes C300
• Symptoms: Check Engine Light, P0016 code
• Diagnosis: Faulty camshaft position sensor on Bank 1
• Solution: Replaced the camshaft position sensor. The code was cleared, and the vehicle ran smoothly.

9.2. Case Study 2: Timing Chain Stretch

• Vehicle: 2012 Mercedes E350
• Symptoms: Check Engine Light, P0017 code, rough idling
• Diagnosis: Timing chain stretch beyond acceptable limits
• Solution: Replaced the timing chain, tensioner, and guides. The engine timing was realigned, and the vehicle’s performance returned to normal.

9.3. Case Study 3: Balance Shaft Sprocket Wear (M272 Engine)

• Vehicle: 2007 Mercedes C280 with M272 engine
• Symptoms: Check Engine Light, P0016 and P0017 codes, reduced engine power
• Diagnosis: Excessive wear on the balance shaft sprocket
• Solution: Performed a complete engine disassembly and replaced the balance shaft sprocket. This resolved the timing misalignment and restored engine performance.

These case studies highlight the importance of accurate diagnosis and the effectiveness of targeted repairs.

10. FAQs About Engine Codes P0016 and P0017 in Mercedes

Here are some frequently asked questions about these engine codes:

10.1. Can I Drive My Mercedes With P0016 or P0017?

Driving with these codes is not recommended. The engine may experience reduced power, stalling, and potential damage if the timing is significantly misaligned.

10.2. How Long Does It Take to Fix These Codes?

The repair time varies. Replacing a sensor may take an hour or two, while a timing chain or balance shaft replacement can take several days.

10.3. Are These Codes Covered Under Warranty?

Coverage depends on the vehicle’s warranty status and the specific component failure. Check your warranty documentation for details.

10.4. Can Low Oil Cause These Codes?

Yes, low oil levels or pressure can affect the performance of timing components and trigger these codes.

10.5. What Tools Do I Need to Diagnose These Codes?

You’ll need an OBD-II scanner, multimeter, and possibly an oscilloscope. Specialized tools may be required for timing chain or balance shaft inspections.

10.6. How Often Should I Check My Engine’s Timing?

Check the engine’s timing during routine maintenance, especially after 100,000 miles or as recommended by your mechanic.

10.7. Can Aftermarket Parts Cause These Codes?

Using low-quality or incompatible aftermarket parts can lead to performance issues and trigger these codes. Always use OEM or high-quality alternatives.

10.8. What Is the M272 Engine Balance Shaft Issue?

The M272 engine is known for premature wear on the balance shaft sprocket, leading to timing misalignment and engine codes.

10.9. Is It Worth Repairing a Mercedes With the Balance Shaft Issue?

The decision depends on the vehicle’s overall condition and your budget. While the repair is costly, it can extend the life of the vehicle if other components are in good condition.

10.10. How Can VCCarTool Help Me With These Codes?

VCCarTool offers remote diagnostic support via WhatsApp: +1 (901) 414 – 1927, provides quality parts and tools, and offers expert advice to help you resolve these issues efficiently.

Conclusion

Dealing with engine codes P0016 and P0017 in your Mercedes can be daunting, but with the right knowledge and tools, you can effectively diagnose and repair the underlying issues. Remember to follow a systematic approach, use quality parts, and seek professional help when needed. Contact VCCarTool today via WhatsApp: +1 (901) 414 – 1927 for expert assistance and get your Mercedes running smoothly again.
